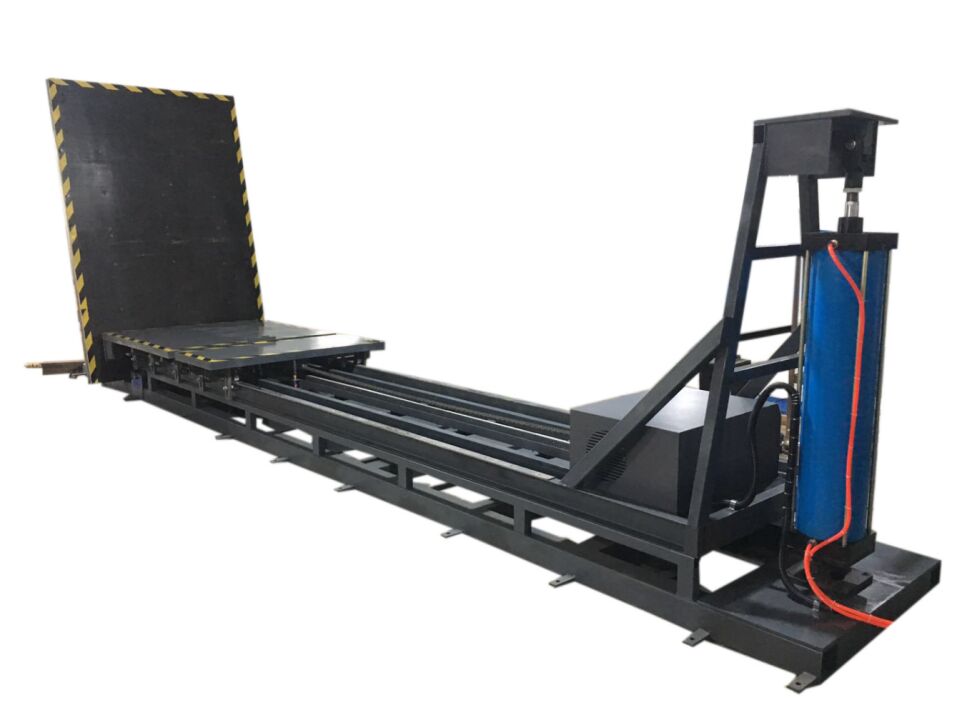

800kg ISTA Test standard Package Inclined Impact Test Machine

Name: 800kg ISTA Test standard Package Inclined Impact Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-IM800
Price: 4,500.00 USD
Availability: InStock

Markenname:	SKYLINE
Modellnummer:	SL-IM800
MOQ:	1
Preis:	Negociate
Zahlungsbedingungen:	Western Union, MoneyGram, T/T, L/C, D/A, D/P.
Versorgungsfähigkeit:	1 Satz/Monat

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

Dongguan, Guangdong

Zertifizierung:

Verpackung Informationen:

Holzkiste

Versorgungsmaterial-Fähigkeit:

1 Satz/Monat

Hervorheben:

800kg ISTA test machine

inclined impact tester

package testing equipment with ISTA standard

Produktbeschreibung

800kg ISTA Test Standard Package Inclined Impact Test Machine

The inclined impact test machine simulates the impact resistance of product packaging under real-world conditions, including handling, shelf stacking, motor sliding, vehicle loading/unloading, and product transportation. This equipment serves as a standard testing device for inclined impact tests in research institutions, colleges, universities, packaging technology testing centers, packaging material manufacturers, and transportation departments.

Machine Features

Flexible positioning electric pulley for easy location fixation and precise speed adjustments
Low pulley height facilitates sample installation with reinforced impact-resistant plate for structural durability
Pulley surface adjusts to horizontal position for convenient sample placement
Angle adjustment operated via pneumatic cylinder for flexibility
Remote control operation ensures complete operator safety
Simple installation requiring only ground securing without complex procedures

Testing Principle

The inclined impact testing principle utilizes the conversion of an object's potential energy into kinetic energy. The packaged item slides to a predetermined position, achieving specific impact velocity upon collision with an impact plate perpendicular to its velocity direction. This equipment simulates horizontal impact and collision conditions experienced by packaging items and containers during transportation.

Test Standards

ISTA 6 (Inclined impact test)

Technical Specifications

Control System	Touch screen control (PLC)
Load Capacity	800kg
Maximum Slide Length	3000mm
Dolly Surface Area	2000 x 2000mm
Impact Surface Dimension	2500 x 2500mm (W x H)
Plane Inclined to Vertical Angle	0-10°
Accuracy	≤ ±5%
Maximum Sample Size	2000mm
Controller	Touch screen
Velocity Range	1.2-2.6 m/s
Velocity Error	≤ ±5% (including speed tester)
Power Requirements	3 phase, 380V, 50Hz

Packing Information

Note: Final specifications subject to shipment

Machine Size: 7800 x 2700 x 2700mm (L x D x H) / 1200KG

Packing ① Box: Inclined track + main unit base
Approx. 3200 x 1800 x 1600mm (L x W x H) / 750KG

Packing ② Box: Rigid impact baffle column assembly
Approx. 2700 x 1200 x 2600mm (L x W x H) / 600KG

Packing ③ Box: Sliding trolley + Electrical control cabinet
Approx. 2200 x 2200 x 1100mm / 250KG
