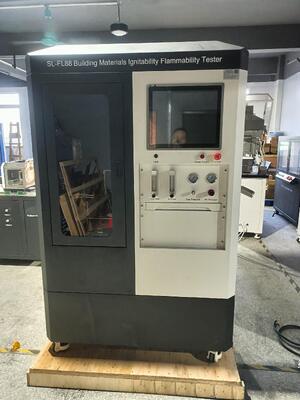

Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output

Name: Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester with 10Kw/m2 ~ 70kW/m2 Irradiance and 50W Output
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-FL88
Price: 4,500.00 USD
Availability: InStock

Markenname:	SKYLINE
Modellnummer:	SL-FL88
MOQ:	1
Preis:	Negociate
Zahlungsbedingungen:	T/T
Versorgungsfähigkeit:	1 Einheit/Monat

Detailinformationen

Produktbeschreibung

Detailinformationen

Herkunftsort:

China

Zertifizierung:

Strahlen:

10 kW/m2 ~ 70 kW/m2

Ausgabe:

50W

Packmaß:

162*100*210

Balance:

Genauigkeit 0,1 g

Auflösung:

0.1 kW/m2

Temperaturbereich:

0 °C ~ 1000 °C.

Verpackung Informationen:

Sperrholzkiste

Versorgungsmaterial-Fähigkeit:

1 Einheit/Monat

Hervorheben:

GOST 30402 flammability tester

ISO 5657 fire testing equipment

building materials ignitability tester

Produktbeschreibung

Building Materials Ignitability Tester GOST 30402 ISO 5657 Flammability Tester

Product Overview

The SL-FL88 Building Material Ignition Performance Tester is designed for evaluating the ignition performance of building materials with thickness not exceeding 70mm when placed horizontally under specified thermal radiation conditions. This advanced flammability testing equipment effectively assesses wall and ceiling lining materials, flooring systems, exterior cladding, and thermal insulation materials for air ducts.

The tester accurately simulates specific fire scenarios, providing results that reflect real-world combustion performance. It clearly distinguishes between easily ignitable materials and fire-resistant materials, helping to evaluate material fire risks and ensure compliance with international safety standards.

Compliance Standards

This equipment is designed to meet the following international standards:

ISO 5657
GOST 30402

According to the official statement in GOST 30402-96, this standard was developed based on ISO 5657-86. The documentation explicitly states that the testing apparatus recommended is completely identical to the international standard.

Key Technical Specifications

Parameter	Specification
Specimen Size	165 mm × 165 mm
Specimen Thickness	Up to 70 mm
Radiant Flux Range	10 - 50 kW/m²
Heat Source	3 kW Radiant Cone
Ignition Mechanism	Automatic pilot flame (4 sec cycle)

Advanced Features

Advanced PLC programming with computer control system
High-precision board and module control with PID control technology
16-bit high-precision signal collection and processing (1% accuracy)
Professional Labview-developed software interface with high automation
Comprehensive propane air supply system with precise flow control
Designed testing environment maintains air velocity below 0.2 m/s
Effective smoke exhaust system without affecting test conditions

Technical Components

Complete system includes radiation cone, ignition device, nozzle, pressure plate mechanism, support frame, temperature recorder, gas system, signal acquisition and processing system, and computer.

Sample Racks and Pressure Plate

Constructed from 1.5mm thick stainless steel
25mm x 25mm square steel tube frame
Total size: 275mm × 230mm
Horizontal protection board: 220mm side length, 4mm thickness
Features vertical guide rods and adjustable pressure system
Includes counterweight system for consistent 20N pressure application

Radiation Cone Specifications

Rated power: 3kW
Radiation intensity range: 10kW/㎡ to 70kW/㎡
3500mm long, 8.5mm diameter stainless steel heating element
Ceramic fiber insulation with 100kg/m² density
Precision heating element positioning with ≤10% opening area obstruction

Product Visualization
