Name: TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P22
Price: 4,500.00 USD
Availability: InStock

Startseite Produkte Laborversuchausrüstung

TAPPI T498 Tissue Softness Tester with 10-1000mN Measuring Range 1.2mm/s Test Speed and 15s Measurement Time

Produktdetails:

Herkunftsort:	CHINA
Markenname:	SKYLIE
Zertifizierung:	CE, Calibration Certificate, Rosh, CO...
Modellnummer:	SL-P22

Zahlung und Versand AGB:

Min Bestellmenge:	1
Verpackung Informationen:	Exportiertes Sperrholzpaket
Lieferzeit:	15 Arbeitstage
Zahlungsbedingungen:	L/C, D/P, D/A, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	20-30 /Monat

Kontakt

Ausführliche Produkt-Beschreibung

Messbereich:	(10 ~ 1000) mN	Testgeschwindigkeit:	1.2 mm/s
Messzeit:	15er	Entschließung:	1mN
Genauigkeit:	± 1%	Eindringtiefe der Sonde:	8 +0,5 mm
Musterplattform schmale Breite:	5 mm, 6,35 mm, 10 mm, 20 mm	Parallelitätsfehler auf beiden Seiten des Probentischschlitzes:	≤0.05mm
Stromversorgung:	Wechselstrom 220 V ± 22 V, 50 Hz
Hervorheben:	10-1000mN Measuring Range Tissue Softness Tester , 1.2mm/s Test Speed TAPPI T498 Test Machine , 15s Measurement Time Softness Testing Equipment

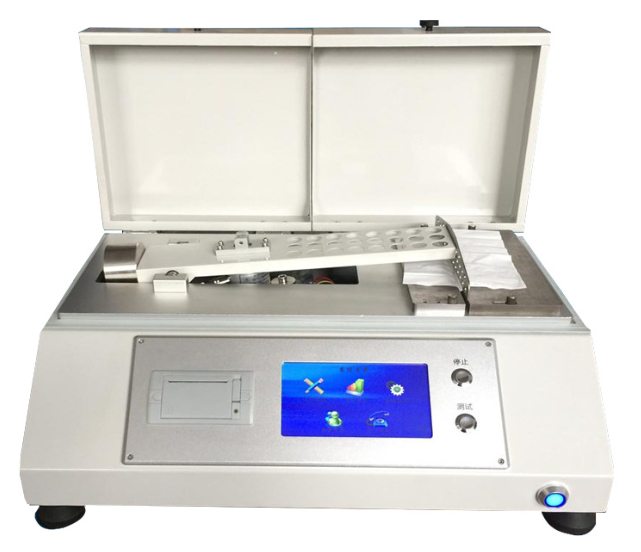

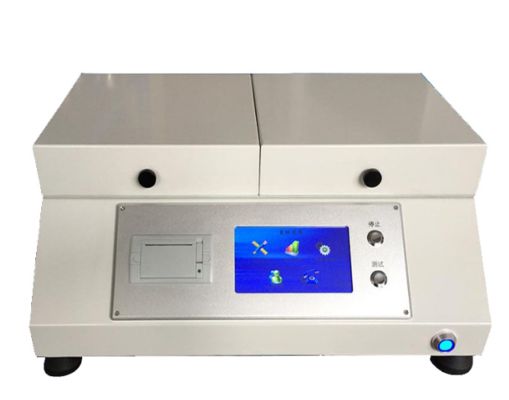

TAPPI T498 Tissue Softness Test Machine

Product Overview

The Tissue Softness Tester is a precision instrument that simulates hand feel to measure material softness. Designed in compliance with GB8942 national standard for paper softness determination, it's ideal for testing medium and high-grade toilet paper, tobacco sheets, fabrics, and similar sheet materials.

Key Features

Microcomputer-controlled digital test system with touch screen interface
Bilingual (Chinese/English) operating system with intuitive controls
Advanced technology with reliable performance and easy operation
Ideal for paper manufacturing, scientific research, and quality inspection

Test Principle

The instrument measures softness by pressing a plate probe into the sample to a depth of approximately 8mm. The softness value (in millinewtons) represents the sum of the sample's maximum anti-bending force vector and the friction between sample and gap. Lower values indicate softer materials.

Compliance Standards

GB/T 8942 QB/T 1060 ASTM D2923 ASTM D6828-02 TAPPI T498 INDA IST 90.3 EDANA WSP 90.3

Technical Specifications

Parameter	Specification
Measuring range	(10 ~ 1000) mN
Test speed	1.2mm/s
Measurement time	15s
Resolution	1mN
Accuracy	±1%
Probe penetration depth	8 +0.5mm
Sample platform narrow width	5mm, 6.35mm, 10mm, 20mm
Parallelism error on both sides of the sample table slit	≤0.05mm
Display	5-inch touch screen with curve display (50,000 hour lifespan)
Power supply	AC 220V ± 22V, 50Hz
Transport packaging	Wooden outer box with internal buffer material
